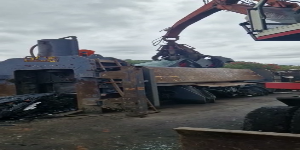

SCM PCM 600

Technical features:

The machine is able to cut loose and pressed iron in bales All structures in direct contact with the material to be processed are made of wear-resistant steel Hardox 400 or equivalent Exclusive Scs system for shearing with variable height for railway profiles and tracks Sliding guides with removable and adjustable bronze pads by means of eccentric

Cutting force                                                                         Ton. 600

Lateral pressure                                                                   Ton. 370

Horizontal pressure                                                              Ton. 150

Variable cutting length mm.                                                 300-600-900

Cutting mouth mm.                                                              800 x 600

Batteries                                                                              2 x 155 AH-700A

Engine                                                                                 N67 MNTA20.00A810 hp 170

Variable flow piston pumps Kawasaki N°                           1 x 500 lt./min. a1800RPM

Hydraulic distributor for lifting the machine                        No. 1

Opening feet with lifting function H= mm.                         1,200 No. 4

 Heat exchangers with automatic thermostat at 60° No.   2

24 V electrodistributor in a single steel block

complete with solenoid valves for all functions

of the shear No.                                                                1 1,000 lt.

hydraulic oil tank No.                                                        1

Control panel with check control Soundproofing of engine compartment and pump

Dimensions in working order:

Length mm.                                                                     15.000

Width mm.                                                                         3.700

Height mm.                                                                        4.100

Weight Ton.                                                                      48

Dimensions in transport order:

Length mm.                                                                    12.500

Width mm.                                                                        2.500

Height mm.                                                                       3.400

Useful dimensions of the case:

Length mm.                                                                      6.000

Width mm.                                                                        2.200
